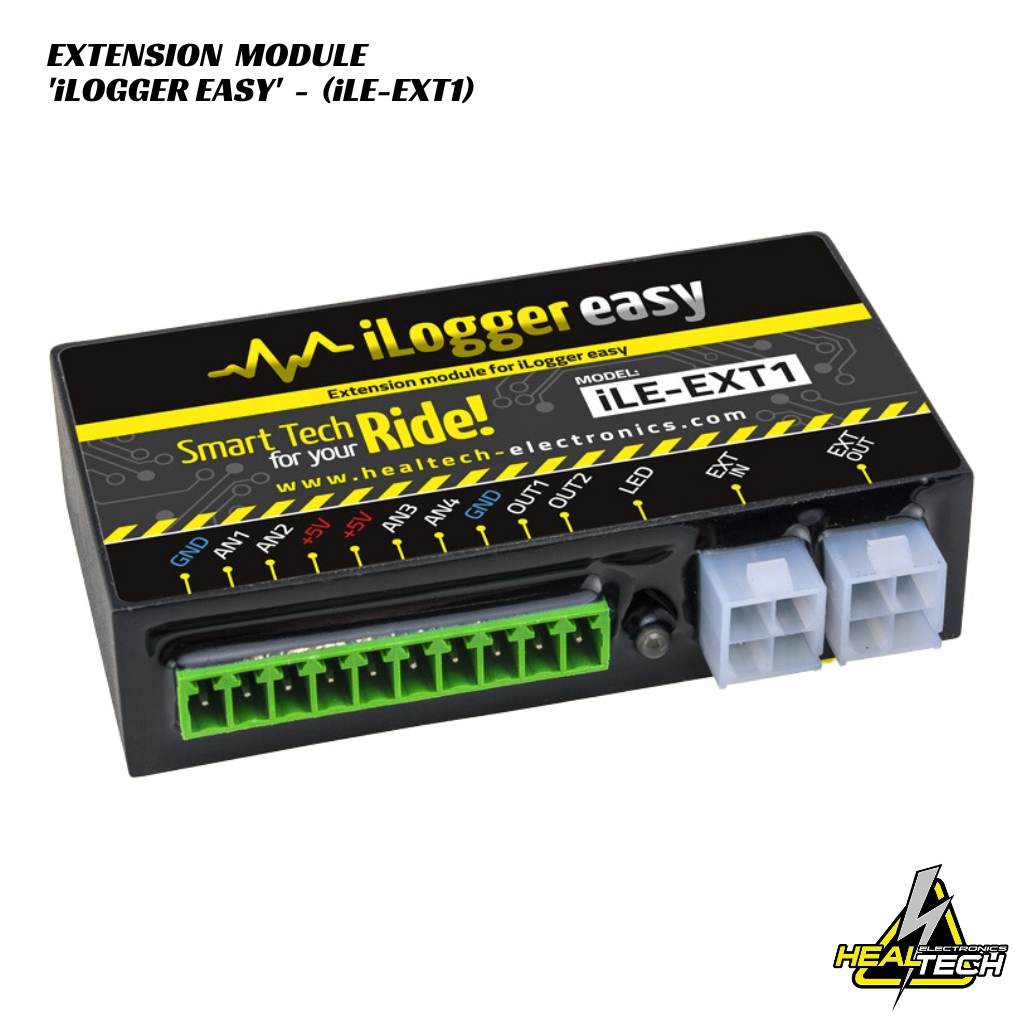

HealTech iLogger Easy – iLE-EXT1 – Extension Module

HealTech iLogger Easy – iLE-EXT1 – Extension Module

If you get serious in your riding game, you will get to a point when the inputs of the iLE-1-KIT aren’t sufficient.

The iLE-EXT1 Extension Module lets you connect another four (4) analogue or digital signals while providing two (2) additional configurable outputs and a power supply output to various sensors.

FOUR (4) EXTRA INPUTS:

• The iLE-1 comes with five (5) input channels.
• With the EXT1 unit, you can extend the number of inputs with an additional four (4) channels.
• All these can be configured to capture either analogue or digital signals.
• The analogue inputs work in the 0-5V range, just as on the main module.

TWO (2) ADDITIONAL OUTPUTS:

• The iLE-EXT1 module provides two (2) additional output channels.
• These channels can feed a switched GND rail for various operations, like controlling relays, fans, pumps, etc.
• Any analogue or digital input on the iLE-EXT1 module can be used as a signal source for the output condition configuration.

+5V SUPPLY FOR SENSORS:

• Besides the additional input and output channels, the iLE-EXT1 module provides two (2) +5V power and two (2) GND connections for new sensors.
• You can power any extra sensors that don’t get power from the main wiring harness of the vehicle.

INCLUDES:

• iLE-EXT1 module.
• Link cable.
• CAN end cap.

PART NO:

• iLE-EXT1
